Motherboard Asus TUF GAMING B850M-PLUS WIFI Skt AM5
EAN: 4711387764916
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
229,00 €
Em stock
Em stock
16
Pessoas a ver este produto agora!
- Recolha em loja com total segurança
Dispomos de lojas por todo país com centenas de produtos em stock.
- Envio por Transportadora
Envios de forma segura por transportadora.
- Warranty 1 year
- Free 30-Day returns
Descrição
A ASUS TUF GAMING B850M-PLUS WIFI é uma motherboard Micro-ATX, ideal para acompanhar o seu chassis mid-tower, apresentando 14+2+1 80A DrMOS power stages, suporte para DDR5, PCIe 5.0 Ready, três slots M.2, Wi-Fi 6E, Ethernet Realtek de 2.5Gb, DisplayPort, HDMI™, BIOS FlashBack™ e uma personalização inigualável graças à iluminação RGB exclusiva ASUS Aura Sync. Este modelo possui o socket AMD AM5 compatível com os processadores de desktop AMD Ryzen™ das séries 9000, 8000 e 7000.

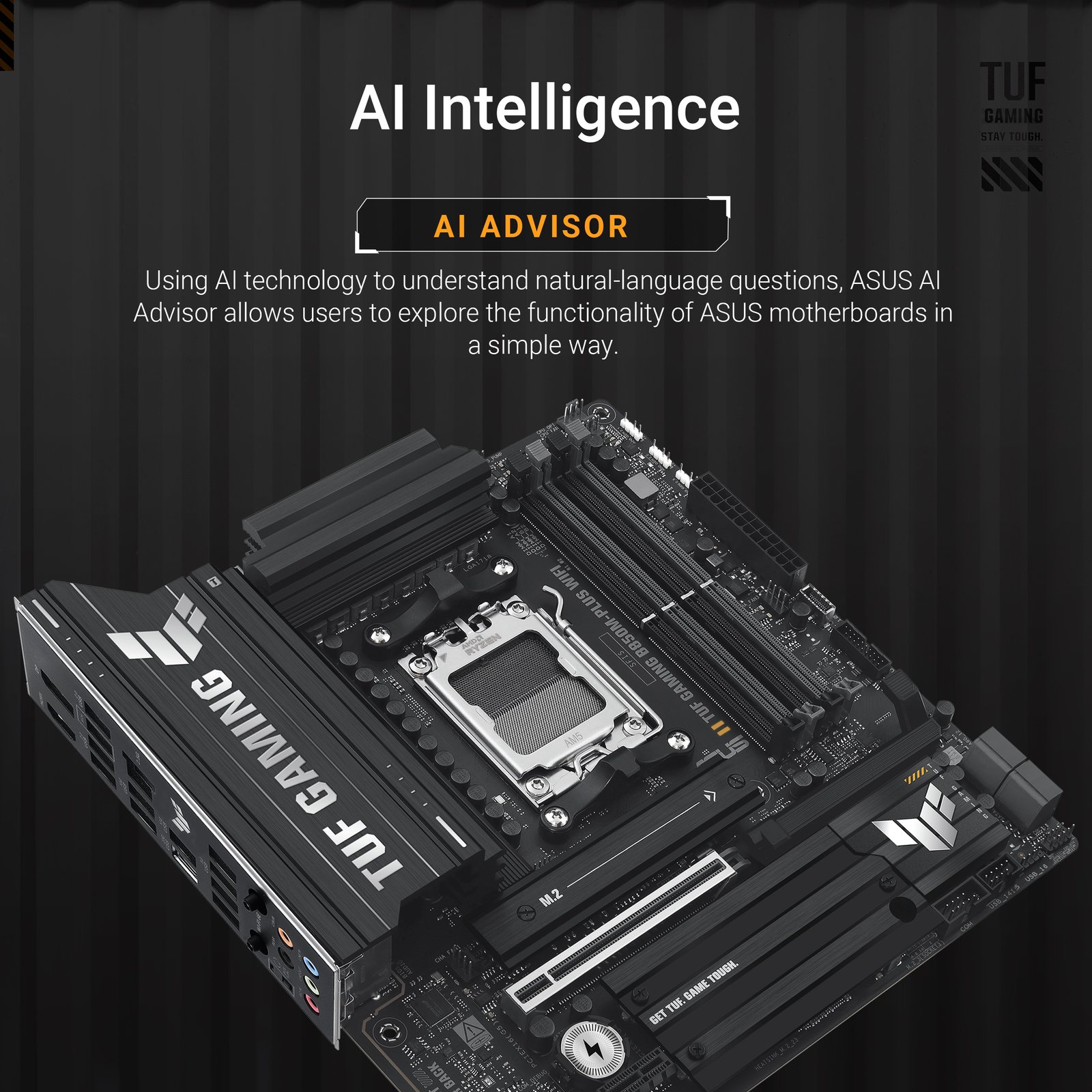

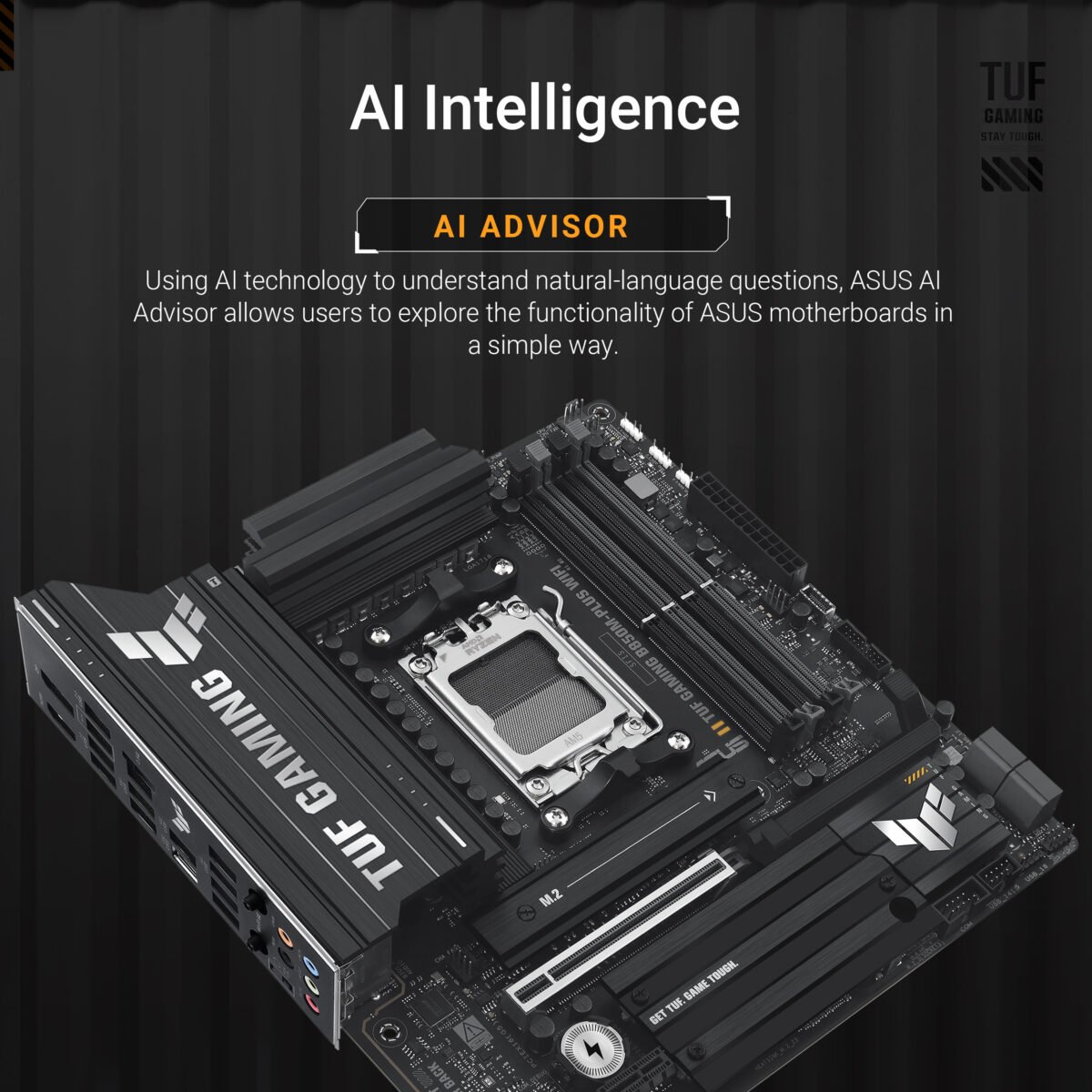

Preparado para PC com IA Avançada
Concebido para o futuro da computação de IA, este motherboard oferece a potência e conectividade necessárias para aplicações de IA exigentes.
Suporte Mais Recente para M.2
A motherboard oferece uma slot PCIe 5.0 M.2 onboard e duas slots PCIe 4.0 M.2, todas equipadas com dissipadores de calor M.2 de grandes dimensões.
Conectividade Ultrarápida
A conectividade é ultrarápida, com Wi-Fi 6E, slot PCIe 5.0 x16, Ethernet Realtek de 2.5Gb, porta traseira USB 20Gbps Type-C® e conector frontal USB 10Gbps Type-C®.

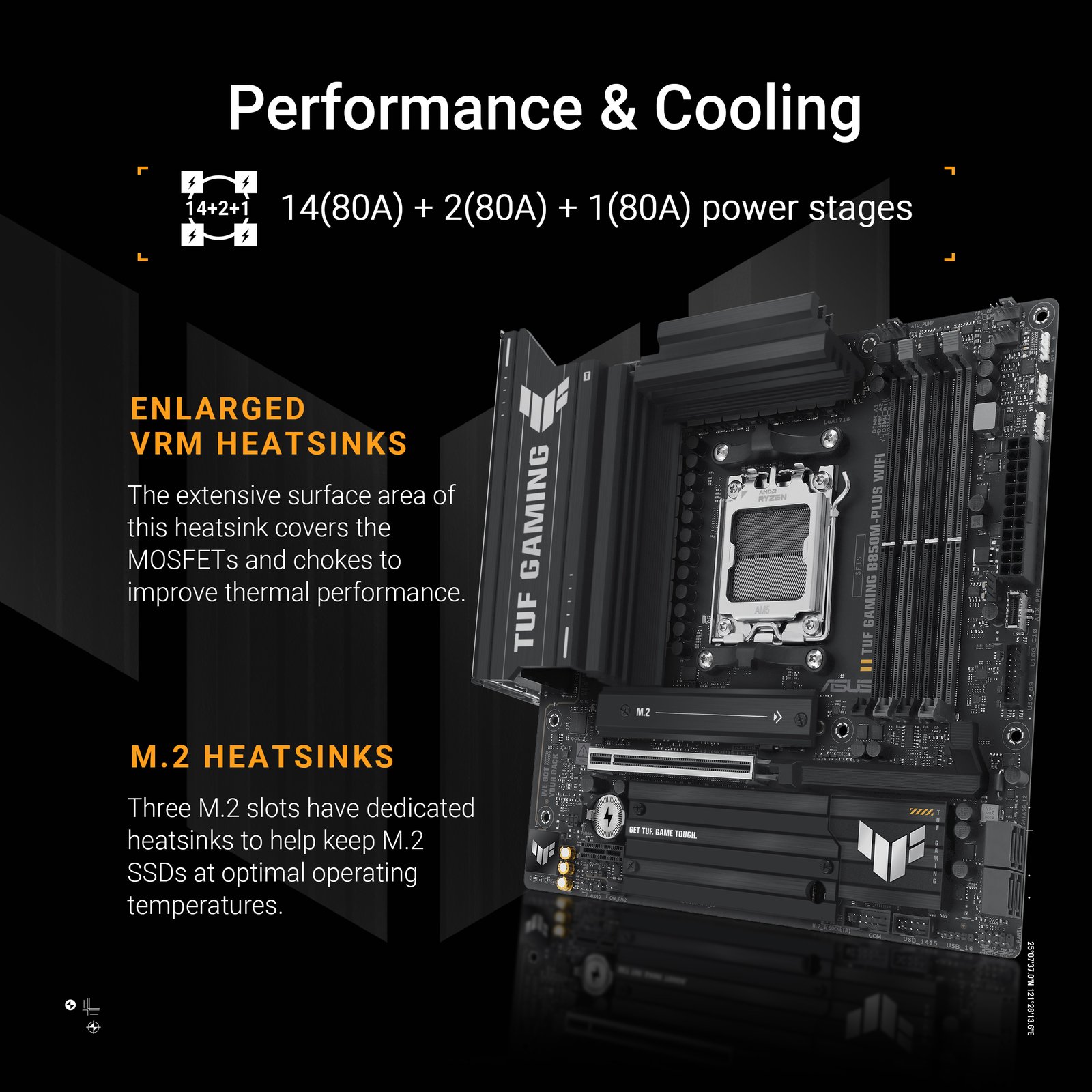

Arrefecimento Abrangente
O design de arrefecimento inclui dissipadores de calor ampliados para VRM e M.2, dissipador de calor PCH, cabeçalhos de ventoinha híbridos e Fan Xpert 4.

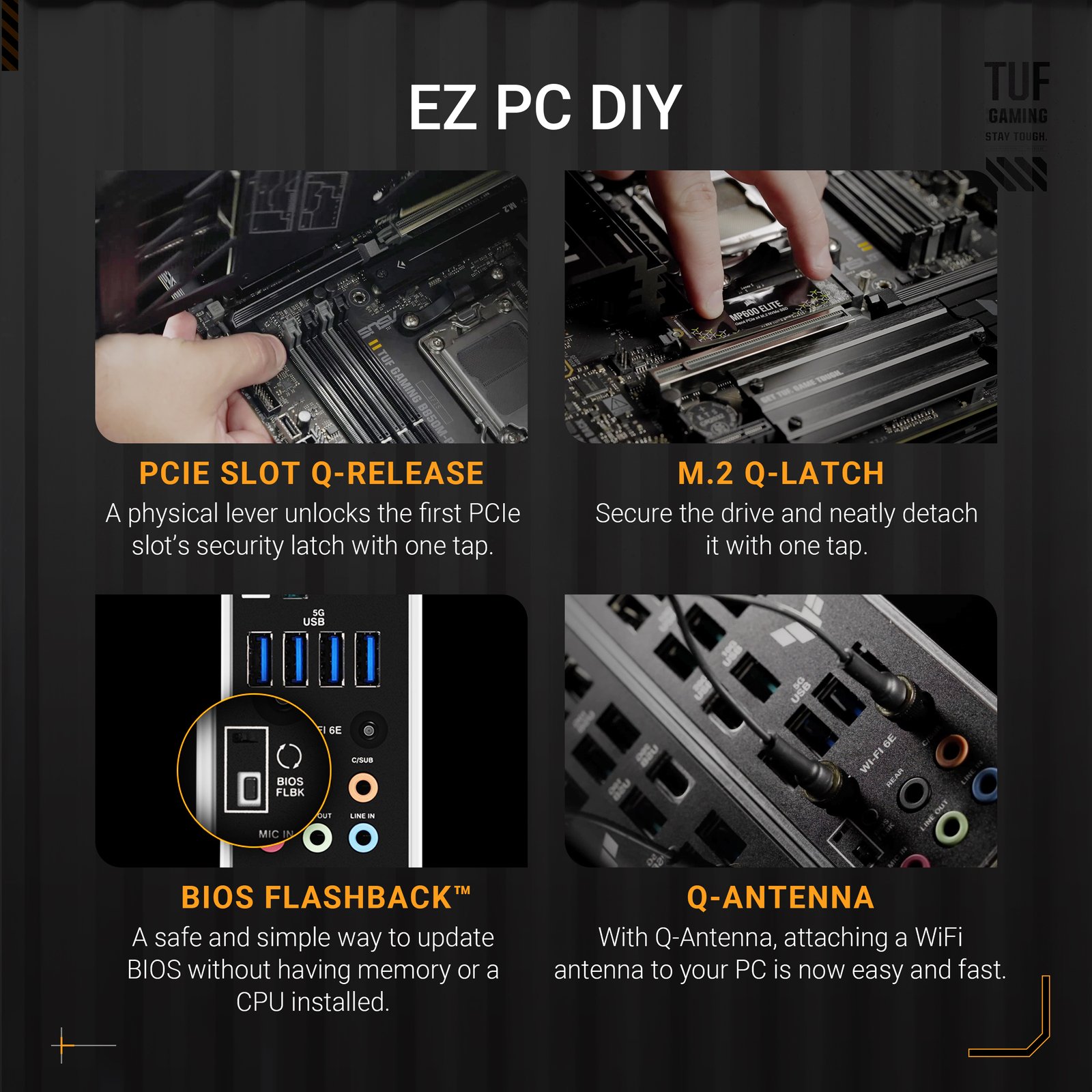

Design Amigável para DIY
O design amigável para DIY inclui libertação rápida da slot PCIe, novo fecho rápido M.2, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ e escudo de I/O pré-montado.
Personalização Inigualável
A personalização inigualável é possível graças a três cabeçalhos addressable Gen 2, todos configuráveis com iluminação exclusiva ASUS Aura Sync RGB.
Software Renomado
O software renomado inclui TurboV Core, ASUS DriverHub, ASUS GlideX e ASUS MyHotkey.
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* |
| Dual channel memory architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| * Adjustments will be made based on the specifications of mass-produced memory products available on the market. | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI™ port*** | |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slot (supports x16 mode) | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | |
| AMD B850 Chipset | |
| 1 x PCIe 4.0 x1 slot | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| ** Specifications vary by CPU types. | |
| – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* | |
| AMD B850 Chipset | |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * Specifications vary by CPU types. | |
| AMD RAIDXpert2 Technology | |
| Ryzen™ 9000 Series Processors: RAID 0/1/5/10 | |
| Ryzen™ 8000 Series Processors: RAID 0/1 | |
| Ryzen™ 7000 Series Processors: RAID 0/1/10 | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| TUF LANGuard | |
| Wireless & Bluetooth® | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| USB | Rear USB (Total 12 ports) |
| 1 x USB 20Gbps port (1 x USB Type-C®) | |
| 3 x USB 10Gbps ports (3 x Type-A) | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 6 ports) | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 3 additional USB 2.0 ports | |
| * USB Type-C® power delivery output: max. 5V/3A. | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* |
| Audio Features | |
| – Audio Shielding | |
| – Premium audio capacitors | |
| – Dedicated audio PCB layers | |
| – Audio cover | |
| – Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |
| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C®) |
| 3 x USB 10Gbps ports (3 x Type-A) | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI™ port | |
| 1 x Wi-Fi module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connectors | |
| Storage Related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 10Gbps connector (supports USB Type-C® ) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 3 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Clear CMOS header | |
| 1 x Chassis Intrusion header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin Front Panel System header | |
| Special Features | ASUS TUF PROTECTION |
| – DIGI+ VRM (- Digital power design with DrMOS) | |
| – ESD Guards | |
| – TUF LANGuard | |
| – Overvoltage protection | |
| – SafeSlot | |
| – Stainless-steel back I/O | |
| ASUS Q-Design | |
| – M.2 Q-Latch | |
| – PCIe Slot Q-Release | |
| – Q-Antenna | |
| – Q-Dashboard | |
| – Q-DIMM | |
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| ASUS Thermal Solution | |
| – M.2 heatsink | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – BIOS FlashBack™ button | |
| – BIOS FlashBack™ LED | |
| – ProCool | |
| – Pre-mounted I/O shield | |
| – SafeDIMM | |
| Aura Sync | |
| – Addressable Gen2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| – Aura Creator | |
| – Aura Sync | |
| – Fan Xpert 4 | |
| – Power Saving | |
| ASUS DriverHub | |
| ASUS GlideX | |
| TurboV Core | |
| TUF GAMING CPU-Z | |
| DTS Audio Processing | |
| Adobe Creative Cloud (Free Trial) | |
| Norton 360 for Gamers (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| – ASUS MyHotkey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

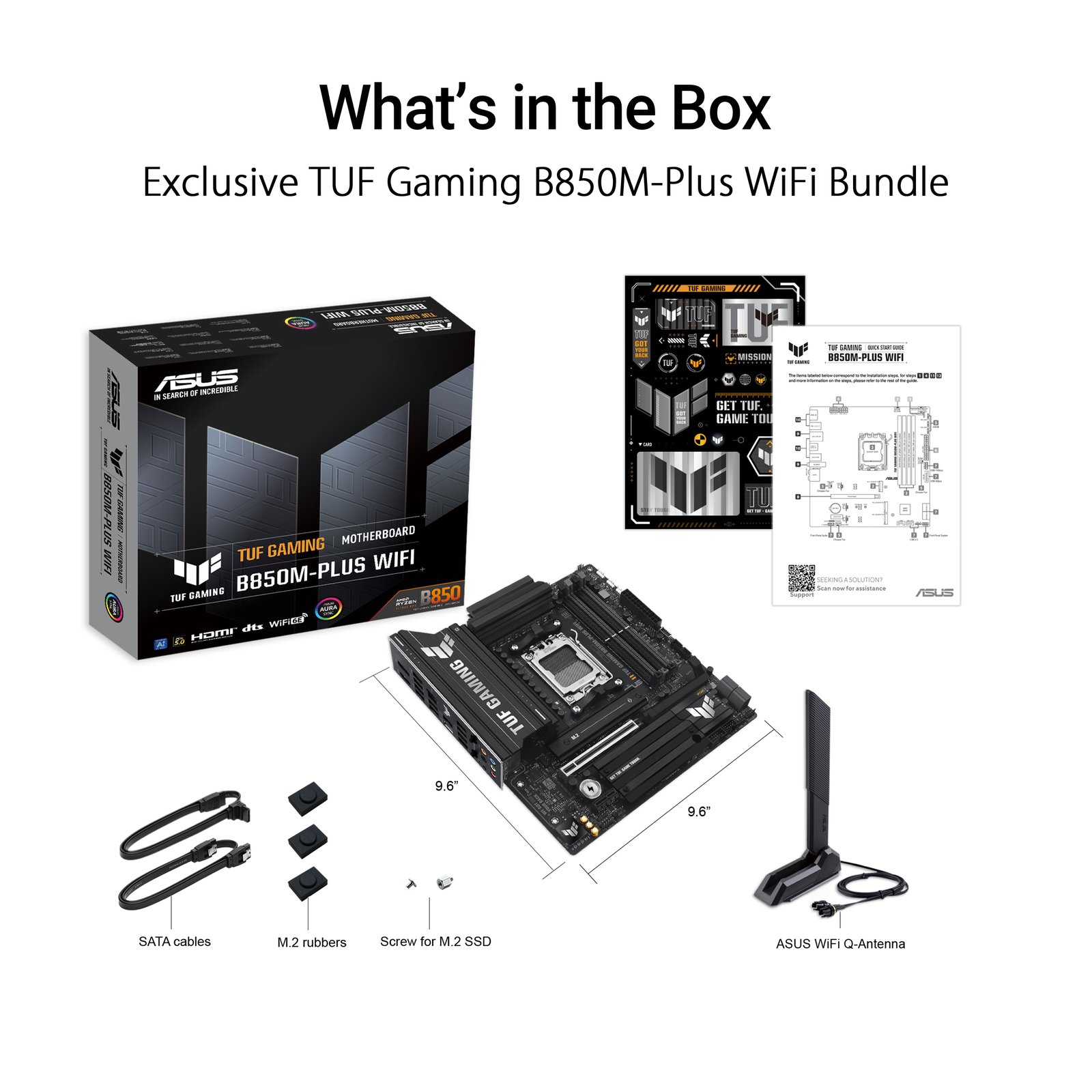

| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x TUF GAMING sticker | |
| 2 x M.2 rubber packages | |
| 1 x Screw package for M.2 SSD | |
| Documentation | |
| 1 x Quick start guide | |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | micro-ATX Form Factor |
| 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
